Temporary Builders Supply Boards over 100A

High capacity TBS switchboards from 800A to 3200A used for medium to large residential, commercial, civil, and industrial sites. Designed for durability, safe access, and straightforward commissioning.

Typical Applications

Key Features

Rugged enclosures with site ready fittings.
CT metering and monitoring provisions.
Clear labelling and isolation points.
Built to current Australian Standards and energy authority practices.
Compliance statement provided for AS61439.4
12 month warranty
Floor mount on hot dip galvanised plinth

Options & Upgrades

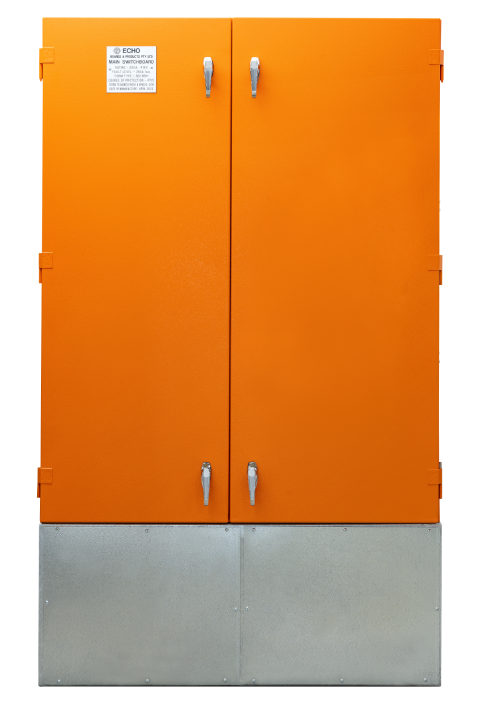

TBOX W200

1.5mm Galvanised, Wall mount or floor mount on hot dipped gal plinth, IP55
Internally wired
200 amp SPD
CT Chamber (‘S’ type CT supplied and installed)
1 x 100 amp outgoing MCB 10kA CT meter panel part of MSB

TBOX W250

1.5mm Galvanised, floor mount on hot dipped gal plinth, IP55
Internally wired
250 amp SPD
CT Chamber (‘T’ type CT supplied and installed)
1 x 100 amp outgoing MCB 10kA
CT meter panel part of MSB

TBOX W400

1.5mm Galvanised, floor mount on hot dipped gal plinth, IP55
Internally wired
400 amp SPD
CT Chamber (‘T’ type CT supplied and installed)
1 x 200 amp outgoing MCCB 36kA
1 x 100 amp outgoing MCB 10kA
CT meter panel part of MSB

TBOX W630

1.5mm Galvanised,floor mount on hot dipped gal plinth, IP55
Free standing on plinth
Internally wired
630 amp SPD
CT Chamber (‘T’ type CT supplied and installed)
2 x 250 amp outgoing MCCB 10kA
CT meter panel part of MSB

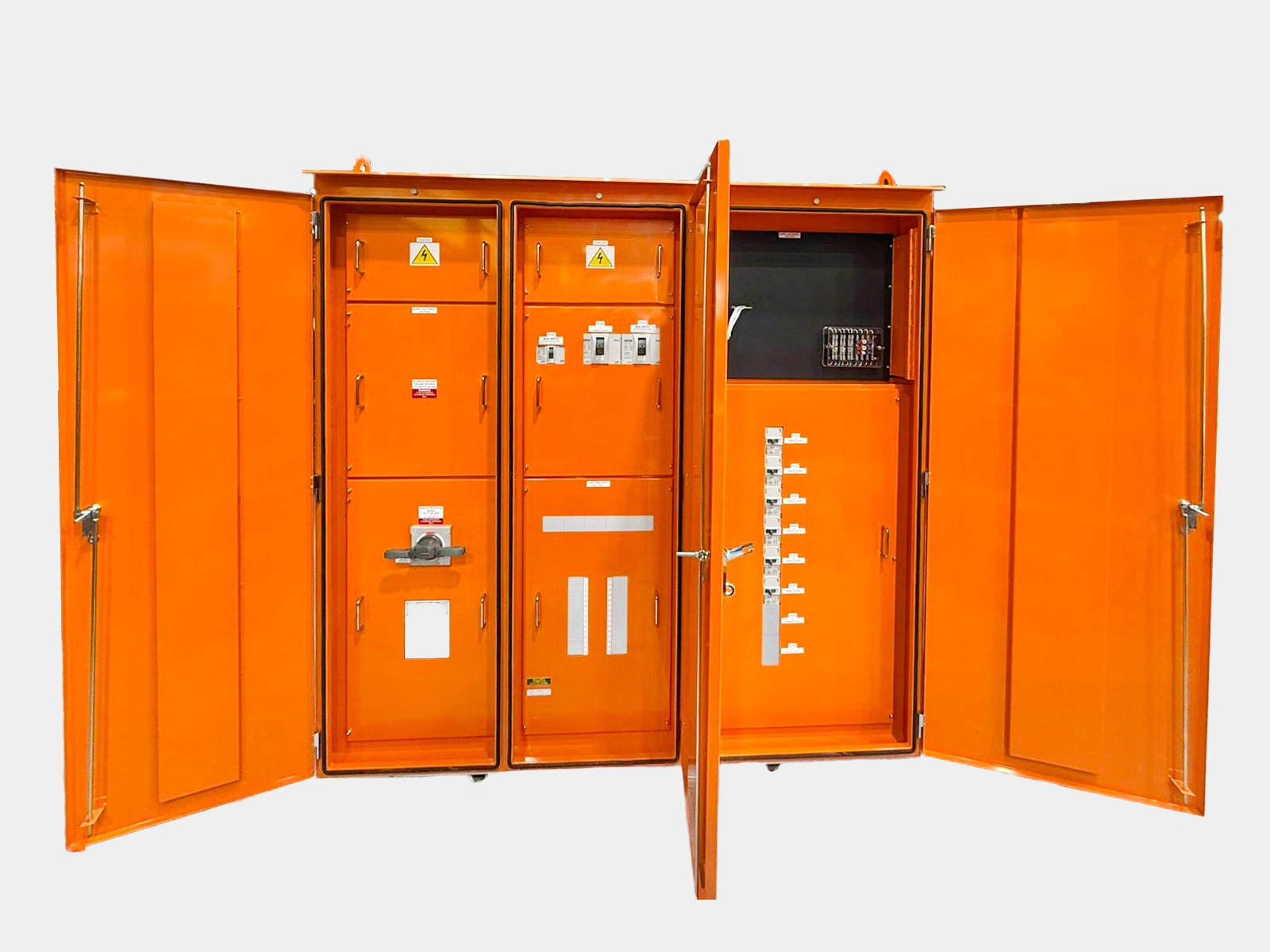

TBOX W800-3200
