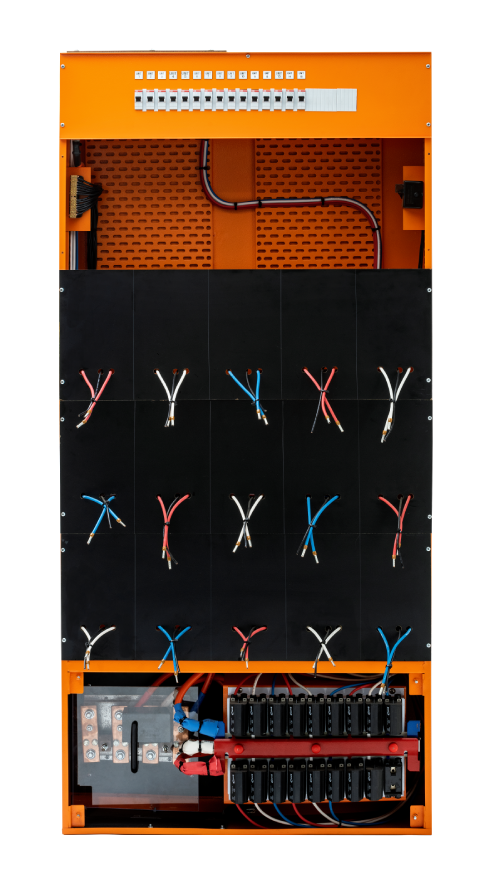

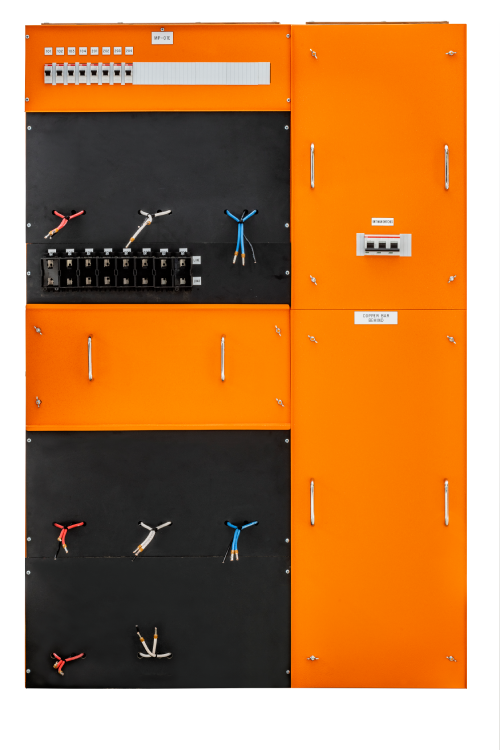

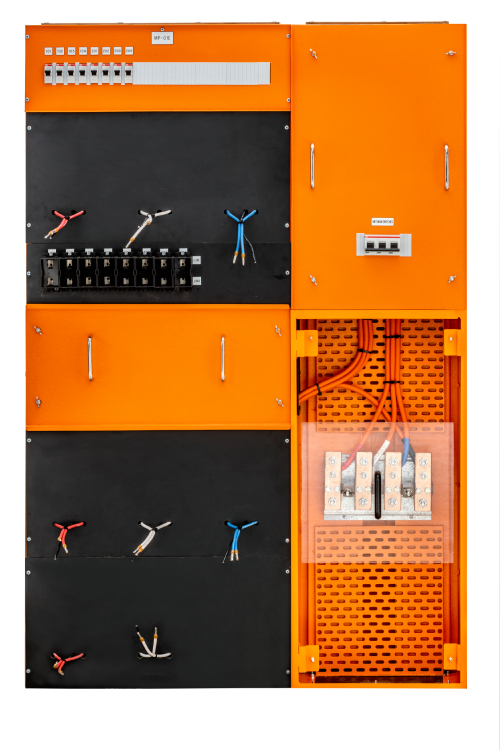

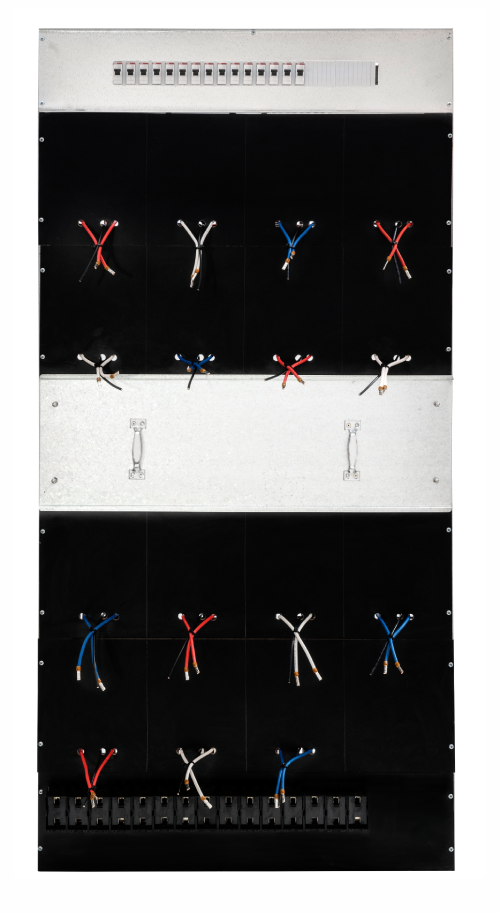

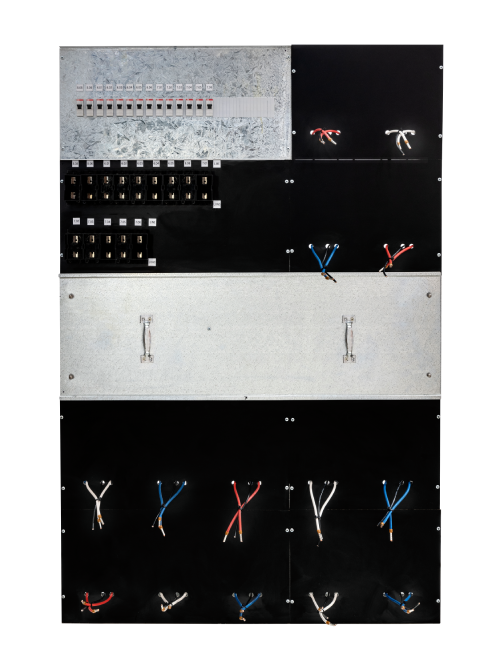

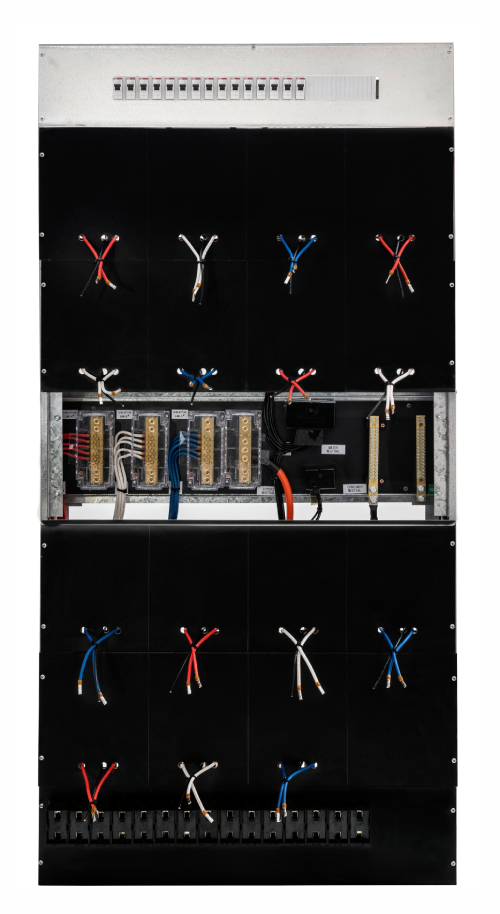

Meter Panels & Fuse Chassis Meter Panels

Tidy, serviceable meter panels with fuse chassis options for reliable protection and straightforward maintenance.
get a quote

Typical Applications

  • Multi meter installations
  • Commercial and mixed use buildings.
  • Upgrade works and refurbishments.
Key Features
  • Clean layouts for efficient metering.
  • Clearly labelled fuse chassis positions.
  • Serviceable wiring routes.
  • Panel surrounds available.
  • Built to current Australian Standards and authority practices.
  • Panel sizes and configurations.
  • Fuse and MCB selection and labelling
  • Authority ready arrangements
  • Finish and colour options.
Request A Quote
Wired
Part Number Width Height Depth
SBW6-1-way6601220200
SBW6-2-way6601220200
SBW6-3-way6601220200
SBW6-4-way6601220200
SBW6-5-way6601220200
SBW6-6-way6601220200
SBW9-7-way6601530200
SBW9-8-way6601530200
SBW9-9-way6601530200
SBW12-10-way8501530200
SBW12-11-way8501530200
SBW12-12-way8501530200
SBW14-13-way10601530200
SBW14-14-way10601530200
SBW18-15-way12701530200
SBW18-16-way12701530200
SBW18-17-way12701530200
SBW18-18-way12701530200
SBW22-19-way14701530200
SBW22-20-way14701530200
SBW22-21-way14701530200
SBW22-22-way14701530200
SBW24-23-way16501530200
SBW24-24-way16501530200
Enquiry Now
data sheet
Part Number Width Height Depth
SB16101530200
SB2910910200
SB39101220200
SB49101530200
SB512201220200
SB612201530200
SB715301530200
SB818301530200
SB924401530200
SB106102000200
SB119102000200
SB1212202000200
SB136101220200
SB148001530200
Enquiry Now
data sheet

Get a Quote

Contact Form

Note: Attach drawings or specifications for the fastest quote. Include project address, authority, required ratings, and deadlines.
